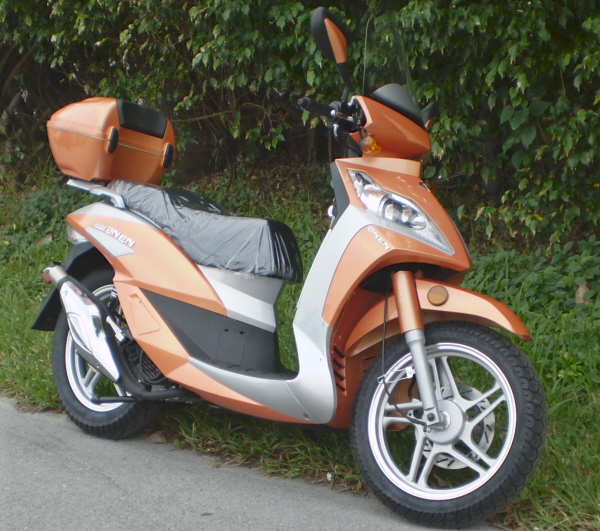

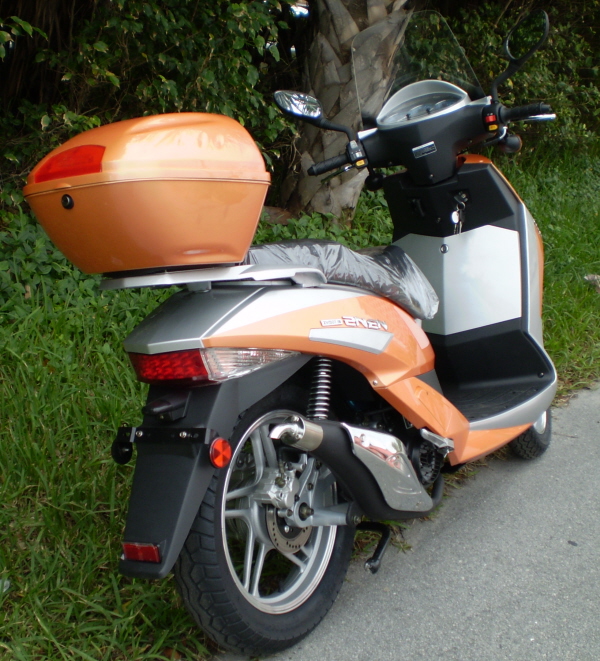

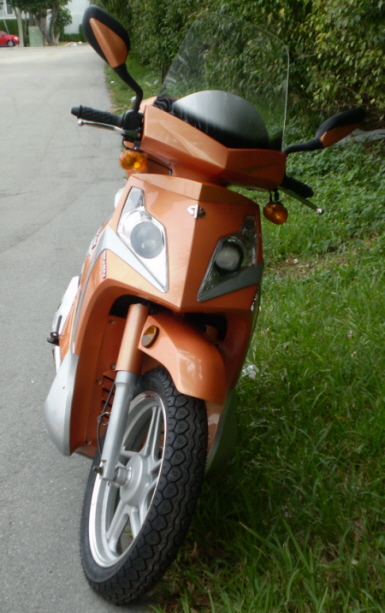

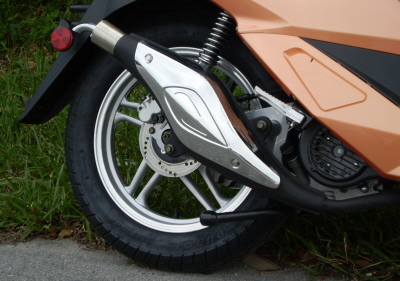

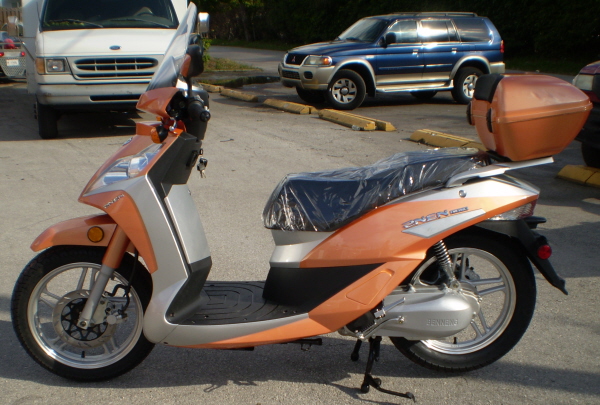

THE NEW VELOCITY SCOOTER

16" Wheels With 4 Different Colors To Choose From








TYPE ZN150T-18
 NAME  VELOCITY
 CERTIFICATION  E-MARK  EPA  DOT




 SPECIFICATION

 Engine:
 1)Displacement:149.6CC
 2)Description:4 stroke
 3)Cooling:wind-cooled
 4)Engine Type:BN157QMJ-3
 5)Lubrication:sae15w-40/sf (pressure)
 6)Carburetion:PD24JV
 7)Fuel Capacity:9.0L+-0.2L
 8)Starting:electric/foot
 9)Max power:6.4kw/7500r/min
 10)Max torque:9.6n.m/5500r/min
 11)Nominal horse power:6.2/7000[kw/(r/min)]
 Drive:
 12)CDI electronic
 Suspension:
 13)Front:telescopic(oil-damped)
 14)rear:twin shock
 Speed:
 15)Max speed:105km/h
 Brake:
 16)Front:disc
 17)Rear:disc

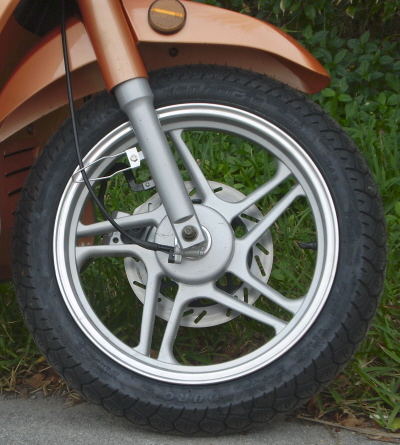

 Rims:
 18)Front/Rear:MT2.5*J16/MT2.5*J16
 Tire:
 19)Front/Rear:100/80-16/MT2.5*J16
 Dimension:
 20)Overall:2145*730*1236mm
 21)Wheelbase:1365mm
 22)Seat Height:855mm
 23)Ground Clearance:180mm
 24)Net Weight:113kgs
 25)Maximum Load:150kgs

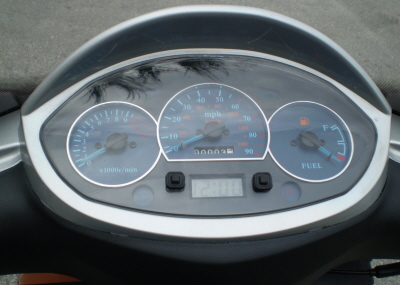

 Meter:
 26)Meter:km/mph
